Its innovative hybrid DC transformer design integrates exotic components, linear regulation, and computer optimized filtering to establish industry-leading audiophile-quality power. From vintage battery-operated stompboxes to modern high current DSP effects, Pedal Power X8 delivers the best power in the business to ensure pedals always sound and perform their best.
ALL ISOLATED OUTPUTS
Equipped with eight galvanically isolated 9V DC outputs, Pedal Power X8 eliminates ground hum and unwanted interaction between pedals. Power 18V pedals by combining outputs with an optional voltage doubler cable or adapter.
Each Pedal Power X8 output delivers up to 500mA of current to supply power-hungry modern DSP effects. Audiophile specifications also ensure the musical character of even the most sensitive vintage stompboxes is preserved. This wide spectrum of flexibility with each output means less guesswork when connecting your pedals.
The low-profile, super light Pedal Power X8 is a perfect fit for small to medium-sized travel boards. Operating at any input voltage 100-240VAC makes international touring convenient and hassle-free. No voltage converters needed. Just hit the road, plug in, and rock out.
EXPANDING PEDAL POWER 3
In addition to serving as a stand-alone power supply, X8 can also power from X-LINK expansion ports, adding eight isolated outputs to a Pedal Power 3 Series power supply.

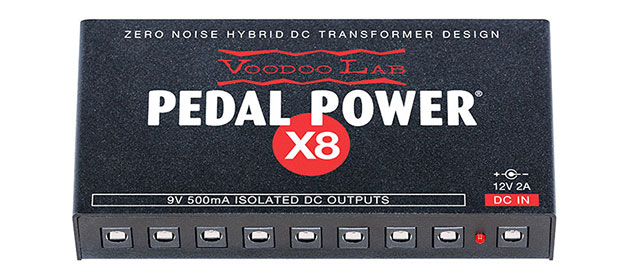

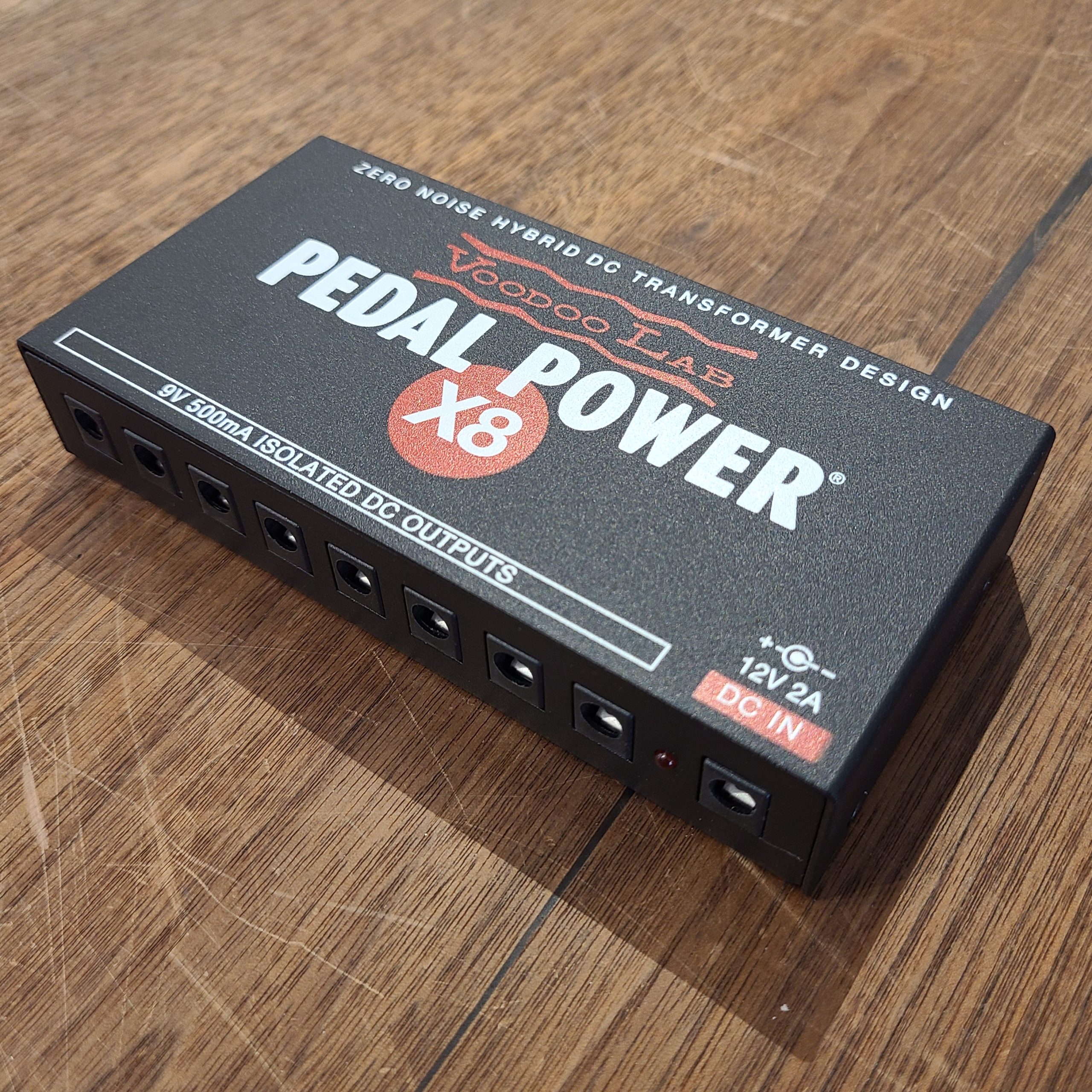

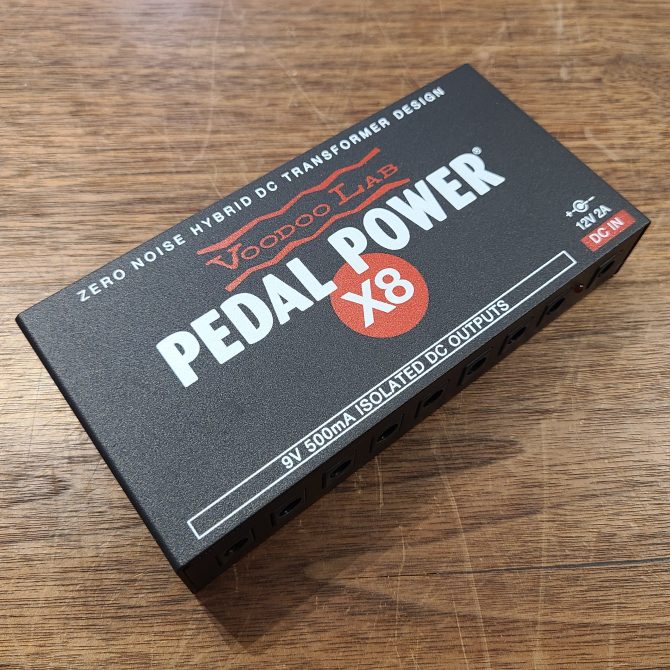

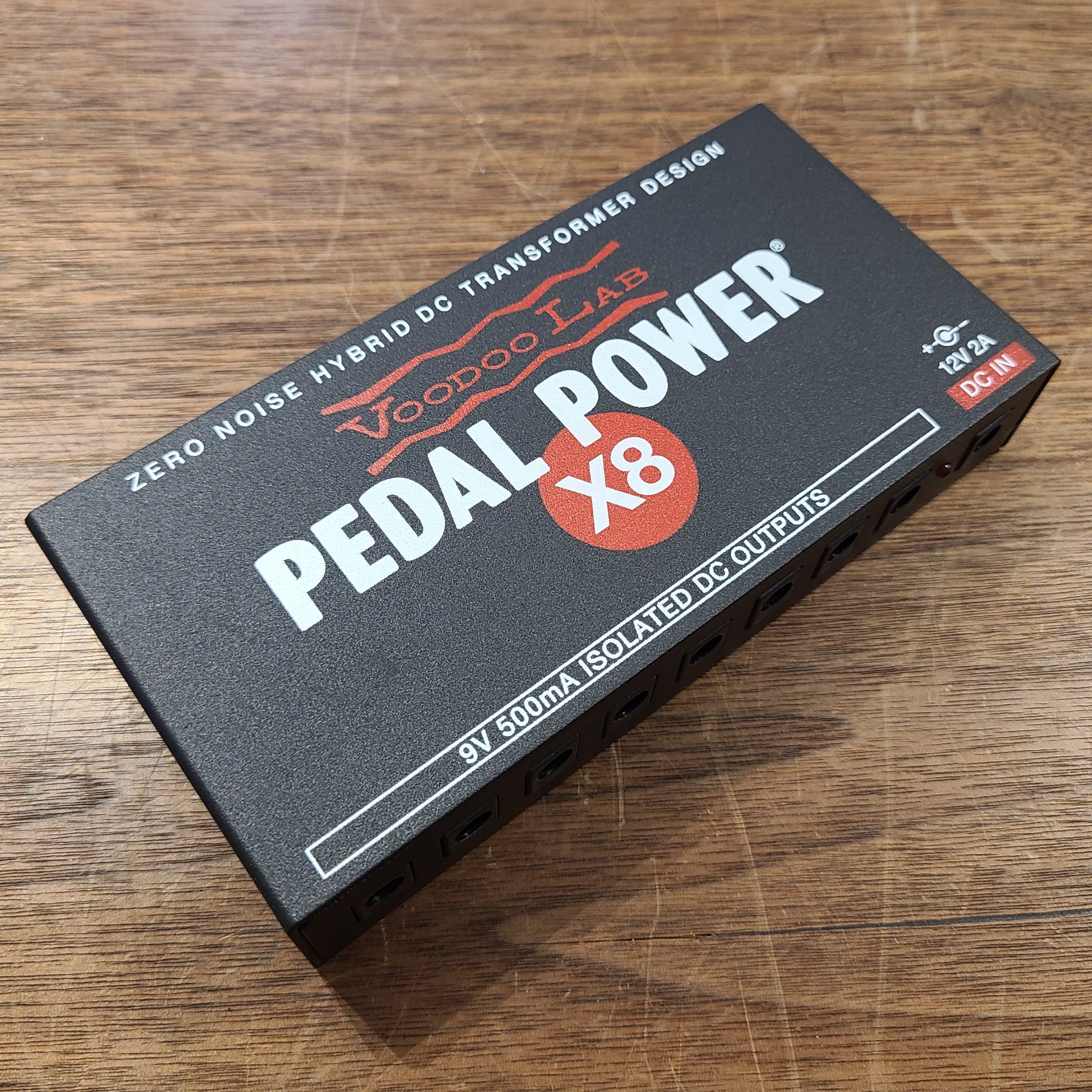

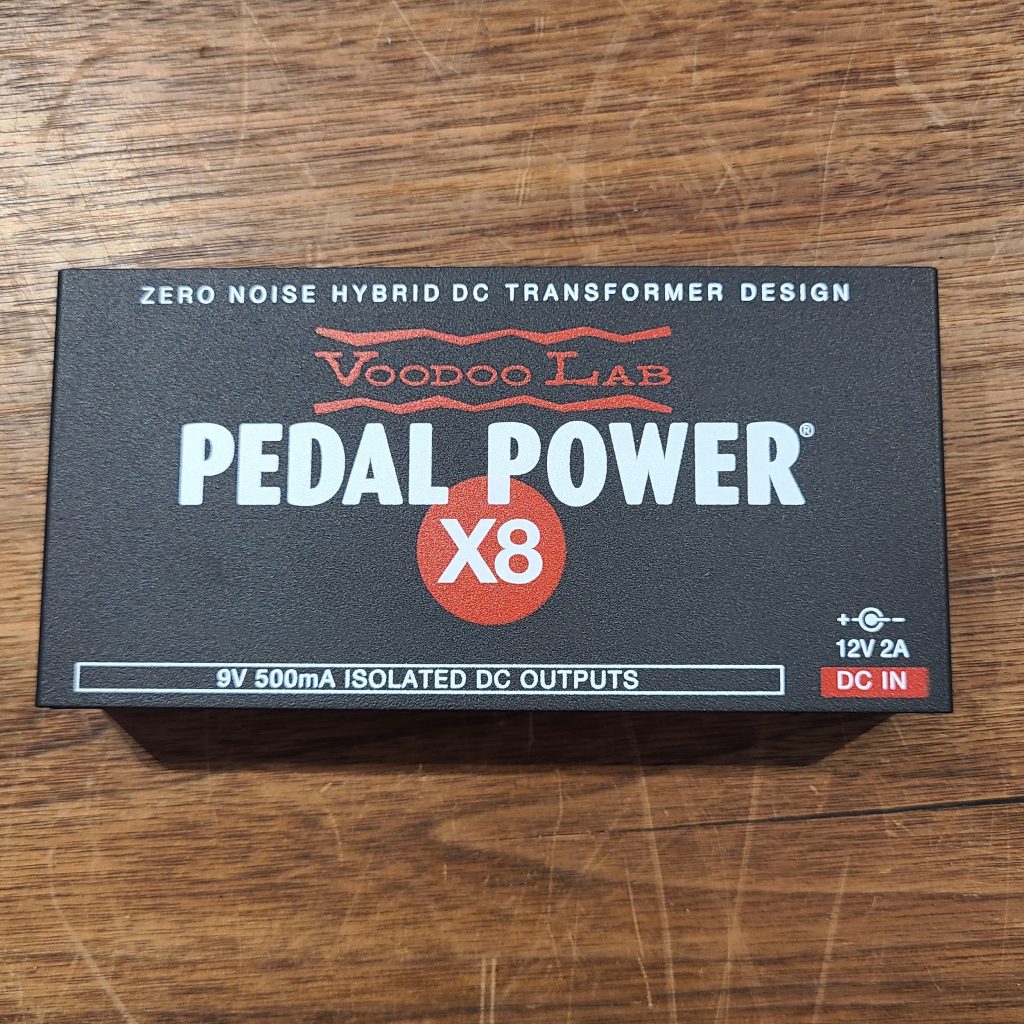

Pedal Power® X8 features:
8 isolated 9V 500mA DC outputs
Powers from included AC adapter or Pedal Power 3 X-LINK expansion ports
100-240VAC operation for international touring
Innovative Zero Noise Hybrid DC Transformer design
Audiophile-quality power ensures pedals always sound and perform their best
Compact ultra-lightweight aluminum construction

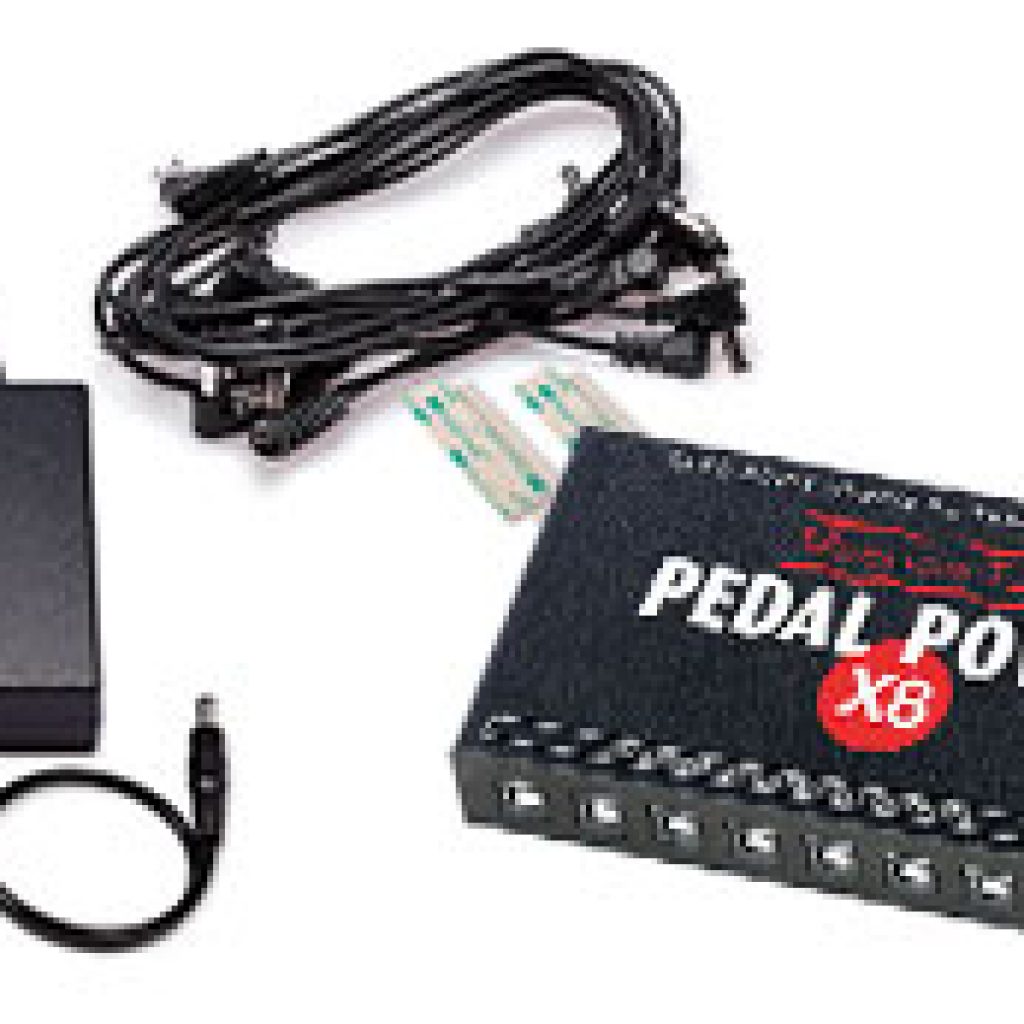

Includes AC line cord, DC power cable kit and 3M Dual Lock for mounting
Dimensions: 5.5” x 2.75” x 1” (140 x 70 x 25 mm)
Weight: 8 ounces (250g)
Hand-built in the U.S.A.
