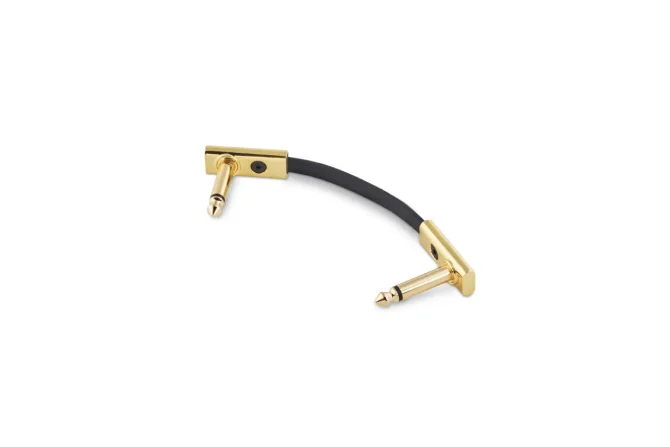

Rockboard Gold Series Flat Patch Cables 5cm (1.97in)

Designed to be extra flat and space-saving to make the most of the available space on your pedalboard, they feature slim, angled jack plugs and the flat conductor cables effectively prevent twisting. Their contacts and the plug housing are plated with gold. The cables feature a double shield of braided copper wire and aluminum, so the flexible copper core is protected from both high-frequency and low-frequency noise. The Gold Series Flat Patch Cables ensure perfect signal transmission and accurate, clean wiring of your board.

• Article No.: RBO CAB PC F 5 GD
• high quality double shielded flat patch cables with rectangular profile
• compact and super flat angled plugs
• gold-plated connectors
• metal plug housings
• flexible copper conductor (20 x 0.12 mm / 36 AWG)
• braided copper shielding (4 x 16 x 0.12 mm / 36 AWG)
• additional aluminum foil shielding
• PE (polyethylene) signal insulation
• PVC cable mantle
• capacitance less than 10 pF/decimeters
• conductor resistance less than 10 mOhm/decimeters
• angled 6.3 mm mono audio plugs
• operating temperature -15º C to +70° C / 5° F to 158° F
• outer dimensions cable (W x H) 7 x 3 mm / 1/4″ x 1/8″ (rectangular)
• outer dimensions plugs (W x H) 12.5 x 7.5 mm / 1/2″ x 5/16″
• black with gold-plated plug housings
• length 5 cm / 1 31/32″
