Mesa Boogie Midi Matrix Mesa Amp Switcher

$379.00

MIDI MATRIX™ AMP CONTROLLER/SWITCHER for MESA/Boogie® Amplifiers

Made in our Petaluma, California “Home of Tone” with the finest materials and craftsmanship and includes:

  • The MIDI Matrix™ Amp Controller replaces a MESA/Boogie amplifier’s multi-pin DIN/XLR or 1/4” foot-switch and automates foot-switchable functions via MIDI
  • 3×10 DIP Switch Array and MESA Pre-Configurations eliminate the need for custom cables or dongles to control virtually every MESA/Boogie Amp ever made.

Product Description

  • Stores up to 250 Presets
  • Accepts MIDI Program Change and Control Change Messages
  • Compatible with all MIDI Foot-Controllers, MIDI capable Multi-Effect Pedals and Pedalboard-based MIDI Loop Switchers
  • Illuminated, Instant Access On/Off Buttons
  • Eight Switching Functions can be configured for Latching or Momentary, normally open or normally closed switching, and arranged into two linked groups
  • Isolated Relays with gold plated, silver alloy, fully sealed contacts for maximum switching compatibility and reliability

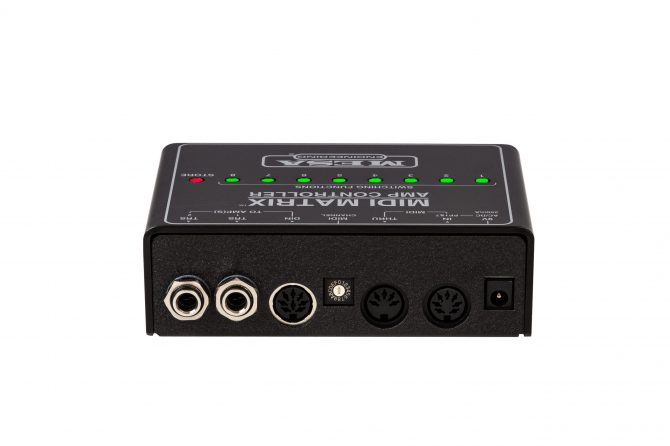

  • The 8-pin DIN and two ¼” TRS Switching Jacks are completely isolated, preventing ground loop hum and noise, and allow simultaneous control of up to three amplifiers or products
  • Uses an amplifier’s existing multi-pin or 1/4” foot-switch cables, standard 1/4” cables, retail 1/4” adapter cables, or a MESA DIN7-to-XLR6 cable (for the Mark IV, Basis M-2000 and Quad Preamp w/ 6-Pin Foot-switch)
  • User Data Dump & Load of all User Presets and Configuration Settings via MIDI (with CRC error detection)
  • Software updates via MIDI
  • Conveniently accepts 9V AC or DC via 2.1mm x 5.5mm barrel plug
  • Provides phantom power to MIDI foot-controllers via 7-pin MIDI cable
  • Rotatable keyed bottom Mounting Plate for Combo Amp or Effects Rack Installations
SPECIFICATIONS
  • Minimum Operating Voltage: 9V DC
  • Maximum Operating Voltage: 12V DC
  • Maximum Current Draw: 250mA @ 9V DC
  • Power Adapter (not included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9V AC or DC, or maximum 12V DC, with a 2.1mm x 5.5mm Barrel Plug – Accepts Negative or Positive Center DC Polarity
  • Dimensions (W x D x H): 5.23”x 4” x 1.59”
  • Bottom Mounting Plate, Rotatable (W x D x H): 4.97” x 3.69” x 0.063”
  • Weight: 0.9lbs (408.2g)
