Limited to 3,500 units worldwide. Behold! The newest incarnation of one of our most beloved pedals ever, the Disaster Transport. For those of you well versed in the pedal’s celebrated history, you might notice some differences on this beautifully sparkly box. A new Mod Mode switch allows you to bend or stretch the modulation wave. The new Mod Speed switch offers three rates of modulation, from bizarrely animated gradual climbs and steep drop offs to rapid chorus and intense vibrato.
The delay line has been redesigned to reduce the noise floor and improve the quality of the delay. Plus, it’s now filtered to sound more like an analog delay than any of the previous versions. With knobs to control the Speed, Intensity, Mix, Repeats, and Time; this analog-voiced digital delay sits perfectly in the background with an evolved ambiance, but can also be dialed in for the dramatic effect of your choosing.
We initially set out to recreate the original Disaster Transport pedal in its earliest form, but the OG of EQD, Jamie Stillman, couldn’t resist tinkering and improving the whole thing, so you just got upgraded, my friend. In doing so, we redesigned the delay line to reduce the noise floor and improve the quality of the delay. We boosted the output with a cleaner mixing section; it’s now filtered to sound more like an analog delay than any of the previous versions.
We’ve added a Mod Mode switch that allows you to choose between bending and stretching the modulation wave. The Bend setting offers a subtler vibe closer to a traditional chorus sound, while the new Stretch option gives you loads of pitch-stretching modulation to run wild with.
The other difference you probably spotted with your eagle eye is the Mod Speed three-position toggle switch. The Slow setting is excruciatingly slow and can produce bizarrely animated gradual climbs and steep drop offs. The Fast setting can go from a rapid chorus to an intense vibrato, while the Medium setting is the most traditional rate similar to the classic Memory Man circuit with a nice range to it.

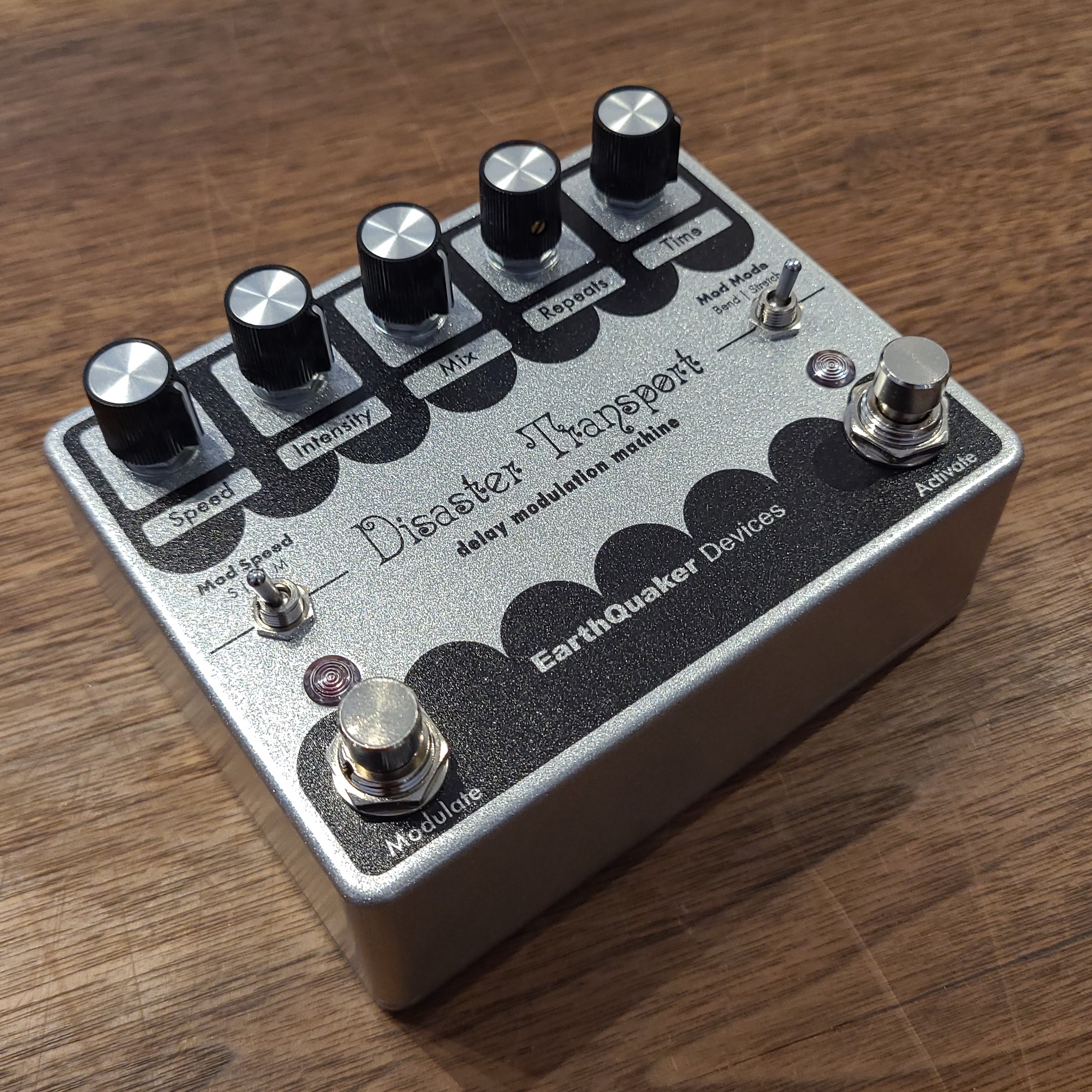

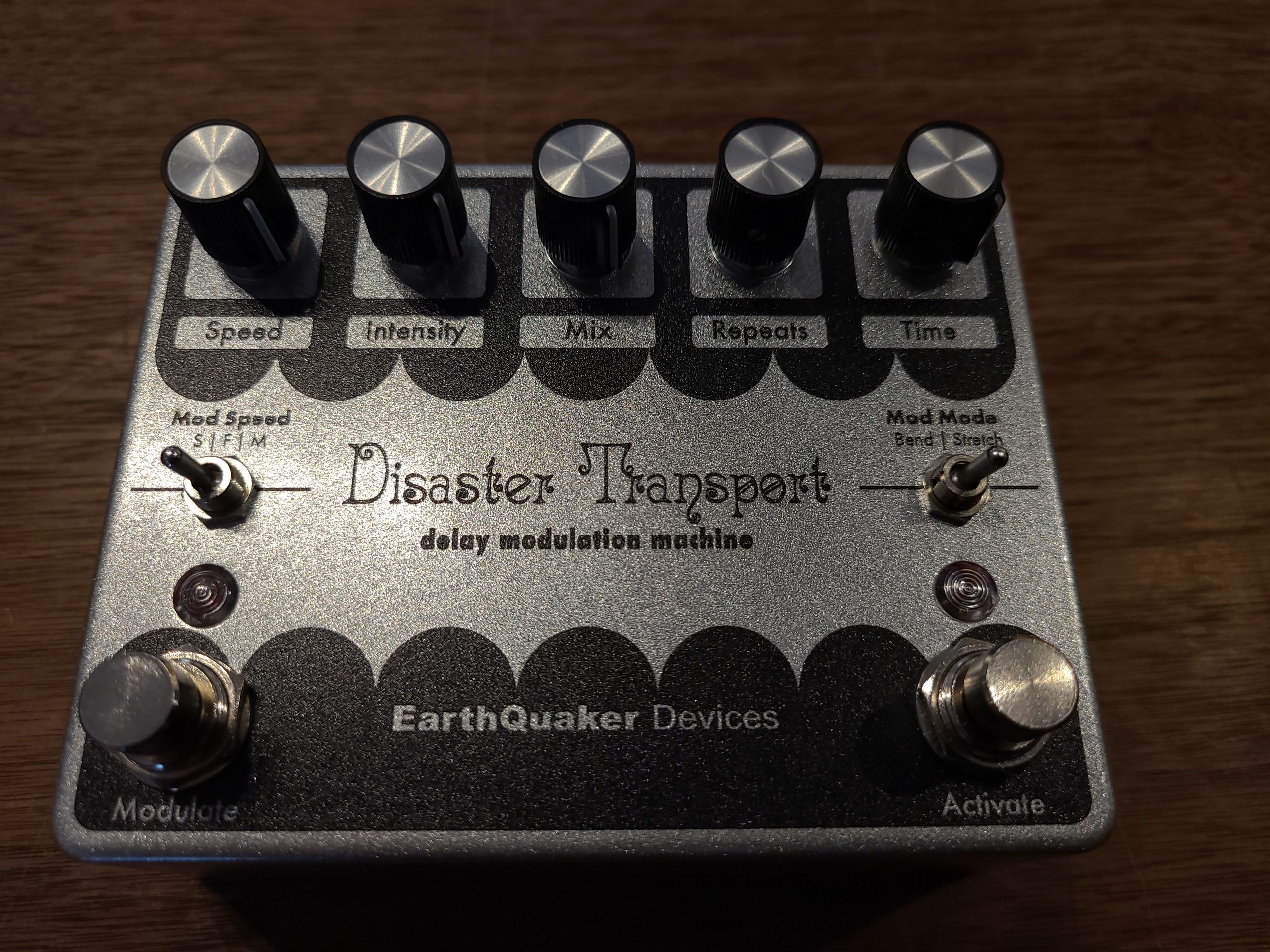

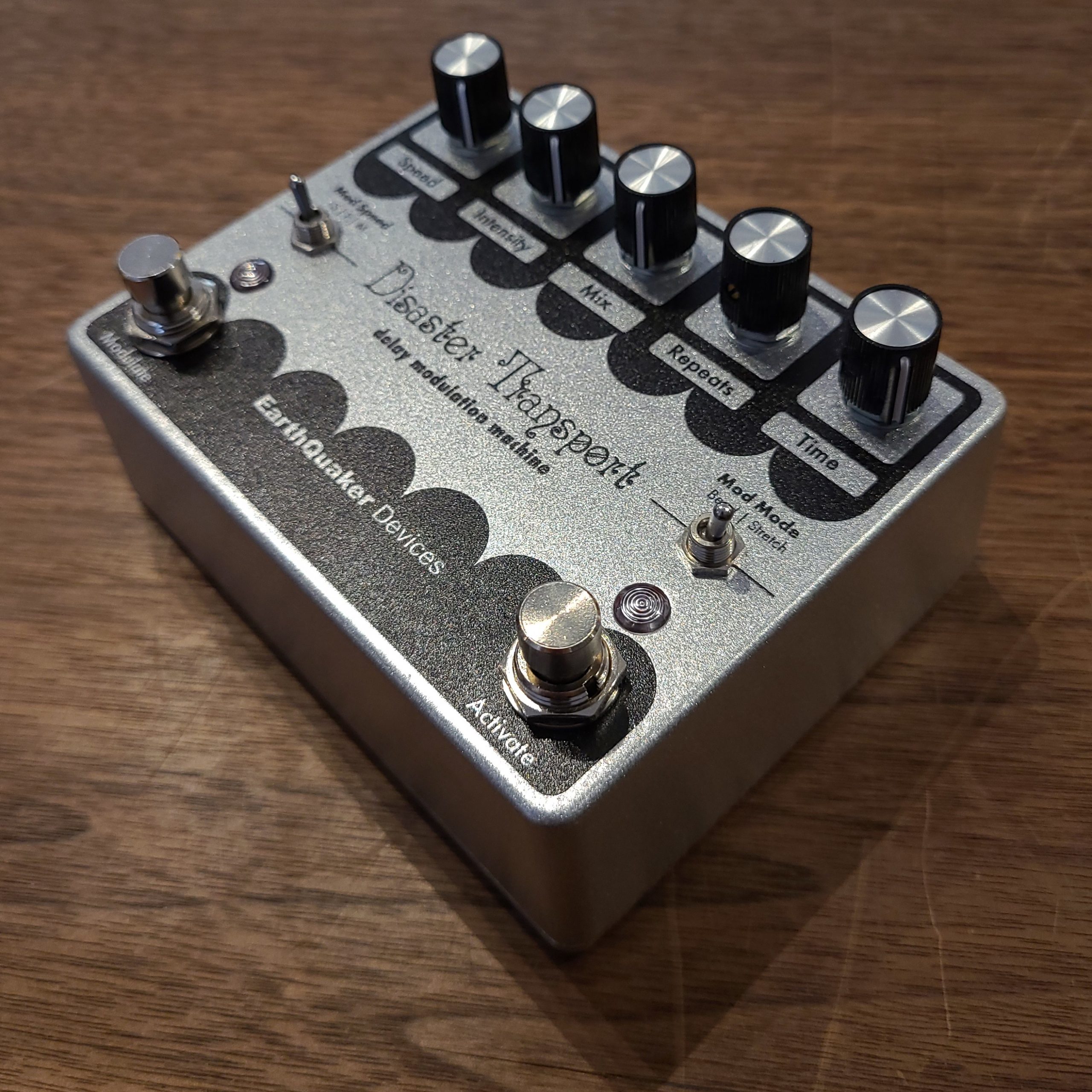

The newly designed enclosure features knobs to control the Speed, Intensity, Mix, Repeats, and Time, with Modulate and Activate switches, making this a highly customizable pedal to get the delay sound of your dreams. Thanks to the ramp modulation circuitry, you can turn the delay time down and start to use feedback and modulation at a higher setting to harness a bizarre modulator and achieve subtle to wild chorus-type effects. Or set your delay time how you want to set it and use your modulation rates to set your tempo, so you can strum or pluck to the climbs and drop offs to match your riffs. The possibilities are endless.
List Price: $219.00
Dimensions: 3.65 x 4.65 x 2.25 in. (93 x 118 x 57 mm) with knobs
Current Draw: 35 mA
Input Impedance: 1 MΩ
Output Impedance: 1 kΩ
Flexi-Switch® Technology
This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
- For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
- For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
Since the switching is relay based, it requires power to pass signal.
Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
